Paper Note – A Tangible Paper Waveform with Processing

Paper Note – A Tangible Paper Waveform with Processing

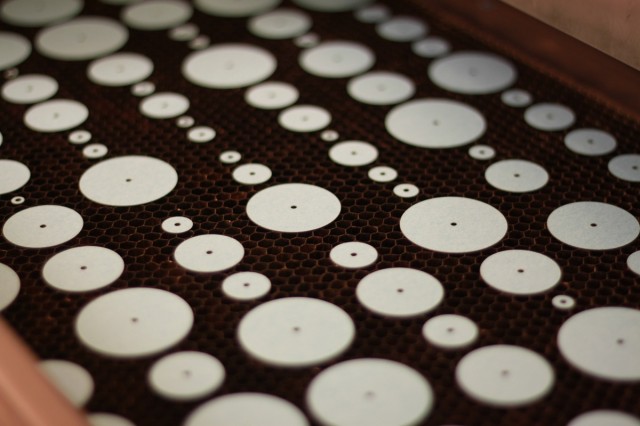

Andrew Spitz and Andrew Nip created this project entitled Paper Note. This project creates a tangible waveform from laser cut disks of paper where the user records a message, sound, etc and the system takes that information and analyses and maps it to each corresponding slice. The circles are laid on a sheet, lasercut and placed together with the end result representing the original sound wave.

Paper Note – A Tangible Paper Waveform with Processing

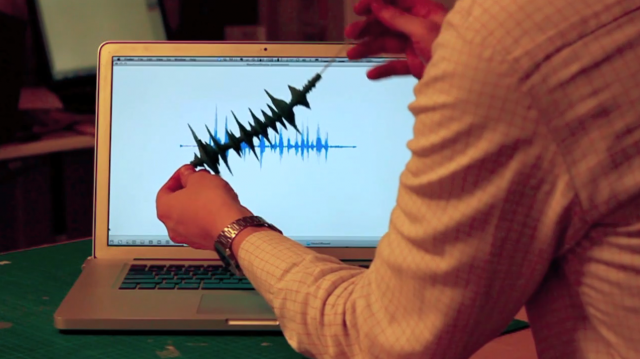

“The team programmed it using Processing. Each Paper Note is made up of around 450 stacked disks of paper. The louder the volume at a specific moment, the bigger the disk. Their algorithm samples the right amount of information from the recording to scale the physical waveform to the size of around 14cm.” — Creative Applications

Paper Note – A Tangible Paper Waveform with Processing

Credits: Andrew Spitz and Andrew Nip
with help from David Gauthier, Joshua Noble and Marcin Ignac for their help with the code

via NotCot, Creative Applications
